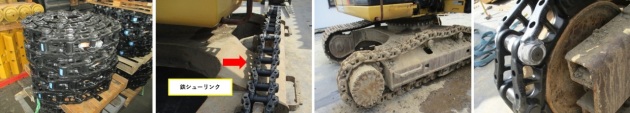

バックホウ用社外シューリンクの対応機種(型式)一覧＜CAT＞
●シューリンク【CAT 対応機種(型式)一覧】
＜表記内容＞「型式-枝番 SER:製造番号 (リンク数)」
ME15 SER:E2E (32)
ME20 SER:E3E (38)
ME25 SER:E4E (38)
ME30 SER:E5E (41)
ME35 SER:E6E (43)
ME40 SER:E7E (37)
ME45 SER:E8E (37)
MM15 SER:E2E (32)
MM15T SER:E6G (32)
MM20 SER:E5F (38) / MM20CR SER:E5G (38) / MM20SR SER:E4G (38) / MM20T SER:E7G (38)
MM25 SER:E4F (39) / MM25T SER:E8G (40)
MM30 SER:E3F (41) / MM30B SER:E8F (41) / MM30CR SER:E9G (41) / MM30SR SER:E3G (41) / MM30SR-3 SER:E8H (41) / MM30T SER:E3H (41)
MM35 SER:E2F (43) / MM35B SER:E7F (43) / MM35T SER:E4H (43)
MM40CR SER:E1H (38) / MM40SR SER:E2G (43) / MM40SR-3 SER:E1J (43) / MM40T SER:E6H (38)
MM45 SER:E1F (38) / MM45B SER:E6F (38) / MM45T SER:E5H (38)
MM55SR SER:E1G (39)
MM57SR SER:E7H (38)
MX15 SER:E6D (37)
MX35 SER:E7D (41)
MX45 SER:E8D (37)
MX55 SER:E9D (38)
MXR30 SER:E1D (41) / MXR30 SER:E1D (43)
MXR35 SER:E2D (41) / MXR35 SER:E2D (43)
MXR50 SER:E3D (38)
MXR55 SER:E4D (38)
MS010 SER:E1A (35)
MS020 SER:E2A (36) / MS020 SER:E2A (37) / MS020 SER:E2C (36) / MS020 SER:E2C (37)
MS030 SER:E3C (41) / MS030 SER:E3C (43) / MS030 SER:E4A (41) / MS030 SER:E4A (43)
MS035 SER:E4C (41) / MS035 SER:E4C (43) / MS035 SER:E5A (41) / MS035 SER:E5A (43)
MS040 SER:E1B (37) / MS040-3 SER:E1B (37) / MS040 SER:E5C (37) / MS040-3 SER:E5C (37)
MS070L SER:9CD (42)
MS090-8 SER: (43)
MS110-2 SER: (39)
MS120 SER:1LF (42) / MS120-8 SER: (43)
MS140 SER:1PF (44) / MS140-8 SER:000 (44)
MS180-8 SER:2BF (48) / MS180LC-8 SER:4HF (52)
MS230 SER:9LD (46) / MS230LC-3 SER: (49)
MS240 SER:2HF (46) / MS240 SER:4MF (50)
MS270 SER:1KG (49)
MS280 SER:1KG (49)
MS300 SER:1KG (49) / MS300 SER:4SF (50) / MS300LC-8 SER: (50)
MS450 SER:3HG (50)
MS650-8 SER:3LG (50)
E110 SER:3GG (39) / E110B SER:9HF (41)
E120 SER:1MF (43) / E120B SER:7NF (43)
E140 SER:1PF (44)
E180 SER:2BF (48)
E200B SER:4SG (45) / E200B SER:6KF (45)
E240 SER:1FG (46) / E240 SER:2HF (46) / E240B SER:9PF (46)
E300 SER:1KG (49) / E300B SER:2HJ (46)
E450 SER:3JG (50)
E650 SER:3LG (50)
E70 SER:3CG (42) / E70B SER:7YF (42)
EL180 SER:4HF (52)
EL200B SER:5EG (49) / EL200B SER:7DF (49)
EL240 SER:4JF (50) / EL240 SER:4MF (50) / EL240B SER:6MG (50)
EL300 SER:4SF (50) / EL300B SER:1GK (50)
017CR SER:K04 (37)
020CR SER:K05 (43) / 020SR SER:K06 (43) / 020ESR SER:K10 (43)
030SR SER:K07 (43)
040SR SER:K08 (43)
050SR SER:K09 (39)
301.5CR SER:RAA (36)
302CCR SER:KSG (40) / 302CSR SER:LJF (40)
303.5CCR SER:CRL (46) / 303.5DCR SER:SEG (46) / 303.5ECR SER:SFH (46) / 303.5ECRSC SER:RSE (46) / 303.5E2CR SER:AC5 (46) / 303.5E2CR SER:CR9 (46)
303CCR SER:AZS (46) / 303CR SER:CAR (43) / 303CSR SER:MSP (43) / 303ECR SER:SMG (43) / 303ECRSC SER:CR7 (43) / 303SR SER:FAD (43)
304CCR SER:ENW (40) / 304CCR SER:STB (40) / 304CR SER:BTN (38) / 304CSR SER:NBM (46) / 304ECR SER:SSC (46) / 304ECRSC SER:TSR (46)
305.5DCR SER:YHS (40) / 305.5ECR SER:YGB (40) / 305.5ECRSC SER:FSC (40)
305CCR SER:GYZ (40) / 305CR SER:BMW (38) / 305CSR SER:KMC (40) / 305DCR SER:WCJ (40) / 305ECR SER:WDL (40) / 305ECRSC SER:XSC (40) / 305SR SER:DCR (38)
307 SER:9ZL (42) / 307B SER:4RW (38) / 307BSB SER:7DZ (38) / 307C SER:BAJ (38) / 307D SER:ECT (38) / 307SSR SER:2FL (42)
308BCR SER:3YS (44) / 308BSR SER:3YS (44) / 308CCR SER:CPE (40) / 308CSR SER:CRW (40) / 308DCR SER:HSA (40) / 308DSR SER:JPS (40) / 308ECR SER:HEL (40) / 308ECRSC SER:HAM (40) / 308ECSR SER:JBE (40) / 308ESRSC SER:JSN (40)
311 SER:5PK (41) / 311B SER:2MS (41) / 311B SER:8HR (41) / 311CU SER:CKE (41) / 311CU SER:CLK (41) / 311DRR SER:AKW (41) / 311DRR SER:AKW (41) / 311FLRR SER:JFT (43)
312 SER:7DK (43) / 312B SER:3ES (43) / 312B SER:9HR (43) / 312C SER:CAE (43) / 312C SER:CAE (43) / 312D SER:FBJ (43) / 312E SER:GAC (43) / 312FGC SER:FKE (43)
313BCR SER:AEX (43) / 313BSR SER:9PR (43) / 313CCR SER:HGF (43) / 313CSR SER:WSA (43) / 313DCR SER:LCE (43) / 313DSR SER:LBR (43)
314CCR SER:KHB (43) / 314DCR SER:MFK (43) / 314ECR SER:ECN (43) / 314ELCR SER:ECN (43) / 314ESR SER:ECN (43) / 314E SER:YCW (43)
315 SER:6XM (41) / 315B SER:2DW (41) / 315C SER:BTL (41) / 315C SER:CFL (41) / 315DL SER:BYK (44)
316EL SER:WZY (44)
318CLN SER:CWP (47)
320 SER:3XM (45) / 320 SER:7GJ (45) / 320B SER:1CS (45) / 320B SER:3MR (45) / 320BL SER:2WZ (49) / 320BL SER:4MR (49) / 320BLU SER:7ZZ (49) / 320BU SER:8GZ (45) / 320C SER:AKH (45) / 320C SER:BCB (45) / 320C SER:FBA (45) / 320C SER:MAA (45) / 320CL SER:ALF (49) / 320CL SER:BDB (49) / 320CL SER:GAA (49) / 320CL SER:PAA (49) / 320CLU SER:ALX (49) / 320CLU SER:GAB (49) / 320CU SER:APA (45) / 320CU SER:FBB (45) / 320D SER:AZR (45) / 320D SER:BWZ (45) / 320D SER:EBT (45) / 320D SER:SNS (45) / 320DL SER:BWP (49) / 320DL SER:DFB (49) / 320DL SER:FNA (49) / 320DL SER:WJN (49) / 320DLRR SER:CWN (49) / 320DLRR SER:SCW (49) / 320DRR SER:AMR (45) / 320DRR SER:RBL (45) / 320E SER:AWS (45) / 320E SER:SXE (45) / 320EL SER:KLT (49) / 320EL SER:LAK (49) / 320ELRR SER:MEW (49) / 320ERR SER:LHN (45) / 320L SER:4JM (49) / 320L SER:8HJ (49)
321BCR SER:AKG (45) / 321BLCR SER:9CZ (49) / 321BSR SER:4MR (45) / 321CCR SER:DAX (45) / 321CLCR SER:KBB (49) / 321DCR SER:JCX (45) / 321DLCR SER:KBH (49)
322 SER:7WL (47) / 322B SER:3NR (47) / 322BL SER:1AS (51) / 322BL SER:5CR (51) / 322C SER:ADX (47) / 322C SER:BFN (47) / 322C SER:BNY (47) / 322C SER:HBG (47) / 322CL SER:BFX (51) / 322CL SER:BMX (51) / 322CL SER:BTE (51) / 322CL SER:KCF (51) / 322L SER:8CL (51)
324D SER:AWN (47) / 324D SER:ECH (47) / 324DL SER:BYE (51) / 324E SER:JCZ (47) / 324EL SER:KTE (51)
325 SER:5WK (45) / 325 SER:8JG (45) / 325B SER:8GM (45) / 325BL SER:7EN (48) / 325BL SER:1GS (48) / 325C SER:BKH (45) / 325C SER:BKT (45) / 325CL SER:BLA (48) / 325CL SER:BLX (48) / 325D SER:CJM (45) / 325DL SER:DAP (45) / 325DL SER:PEH (45) / 325L SER:6KK (48) / 325L SER:7CJ (48)
328DLCR SER:BYH (49)
329D SER:BBF (45) / 329DL SER:LFW (49) / 329DL SER:TAY (49) / 329E SER:PTY (45) / 329EL SER:RDX (49) / 329EL SER:WJK (49)
330 SER:9NG (45) / 330 SER:9PJ (45) / 330B SER:5EZ (45) / 330B SER:9HN (45) / 330BL SER:1JS (49) / 330BL SER:2RR (49) / 330C SER:BTM (45) / 330C SER:GAG (45) / 330CL SER:HAA (49) / 330CL SER:RBH (49) / 330D SER:KAB (45) / 330D SER:LCJ (45) / 330D SER:PCK (45) / 330D SER:PFC (45) / 330DL SER:LDR (49) / 330DL SER:NEF (49) / 330DL SER:RDA (49) / 330DL SER:RDK (49) / 330L SER:6SK (49) / 330L SER:6WJ (49)
336D SER:EMX (45) / 336D SER:JER (45) / 336DL SER:NLS (49) / 336DL SER:SKE (49) / 336E SER:CMR (45) / 336E SER:KED (45) / 336EH SER:HDW (45) / 336EL SER:GTJ (45) / 336EL SER:TEG (45) / 336ELH SER:JEA (45) / 336ELH SER:RZA (45) / 336ELNH SER:SSL (45) / 336FLXE SER:DFY (45) / 336FLXE SER:KGH (45) / 336FLXE SER:LTP (45) / 336FLXE SER:MTW (45)
345B SER:6MW (49) / 345B SER:8KW (49) / 345BII SER:AMD (49) / 345BII SER:AMN (49) / 345BL SER:8RW (51) / 345BL SER:9CW (51) / 345BLII SER:AMJ (51) / 345BLII SER:AYR (51) / 345C SER:JAR (49) / 345C SER:MDC (49) / 345CL SER:GBH (51) / 345CL SER:RFN (51) / 345D SER:BYW (49) / 345D SER:FES (49) / 345DL SER:DPA (51) / 345DL SER:HLC (51) / 345E SER: (49) / 345EL SER: (52)
349E SER:FJB (49) / 349E SER:RGH (49) / 349EL SER:SPG (49) / 349EL SER:WHZ (49)
350 SER:7RK (47) / 350L SER:9DK (51)
